Cetus SuperSlicer configuration
Being completely new to SuperSlicer (a fork of PrusaSlicer), I'm no expert on its configuration. Apparently I did enough right to get some decent prints but I'm sure there is much that could be optimised. Nevertheless, I hope the information here is helpful - even if only a jumping off point.
At the time of writing I'm using SuperSlicer 2.3.57.6. For what its worth, here is my config bundle (cut and paste contents of word doc into plain text .ini):
superslicer_config_bundle.docx
This configuration includes just one filament (PETG) and has only been tested with a 0.6 mm nozzle. I am running my Cetus MK3 with a TinyFab ESP32 CPU, stock heated bed and BLTouch - see previous posts Cetus ESP32 CPU upgrade and Cetus BLTouch upgrade.
Various upper limits
From what I could gather from UP Studio, Tiertime Simplify3D profile and various online sources, these are my basic speeds and speed limits:
| Axis | Slow speed | Rapid speed | Default acceleration |
|---|---|---|---|
| x/y | 50 mm/s | 150 mm/s | 1500 mm/s2 |
| z | 4 mm/s | 16.7 mm/s | 1500 mm/s2 |
| Extruder | ? | 45 mm/s | ? |
Printer Settings
I think I just created a default profile and modified from there.

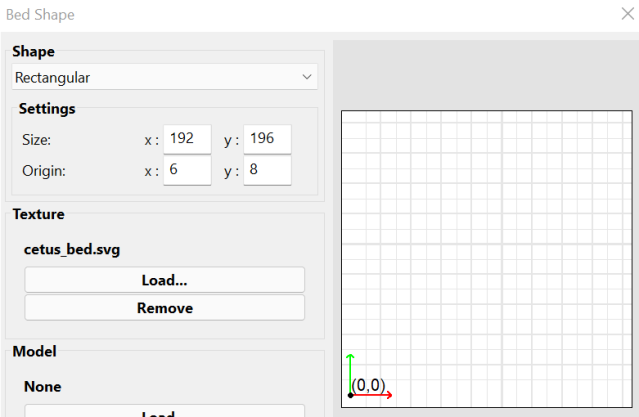

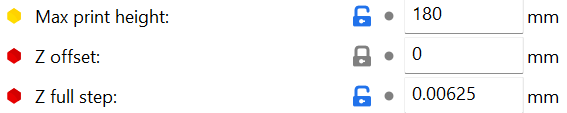

General

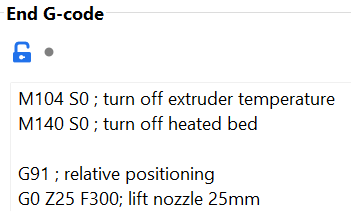

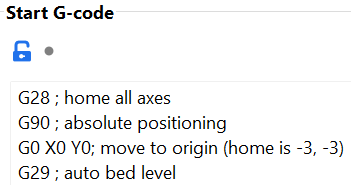

Custom G-code
Machine limits
Extruder 1
I set my Nozzle diameter to 0.6 mm
Filament Settings
I think I modified a generic filament but it's also possible to use/modify the included Prusa filament profiles.

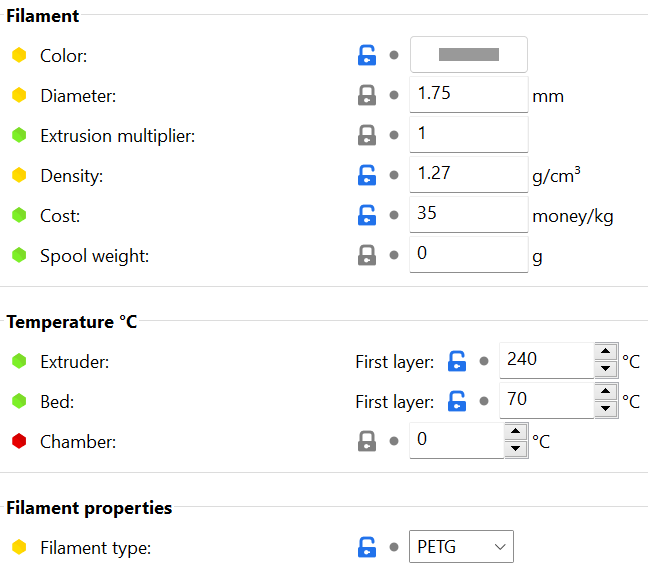

Filament
Print Settings
Defaults except where indicated.
Infill

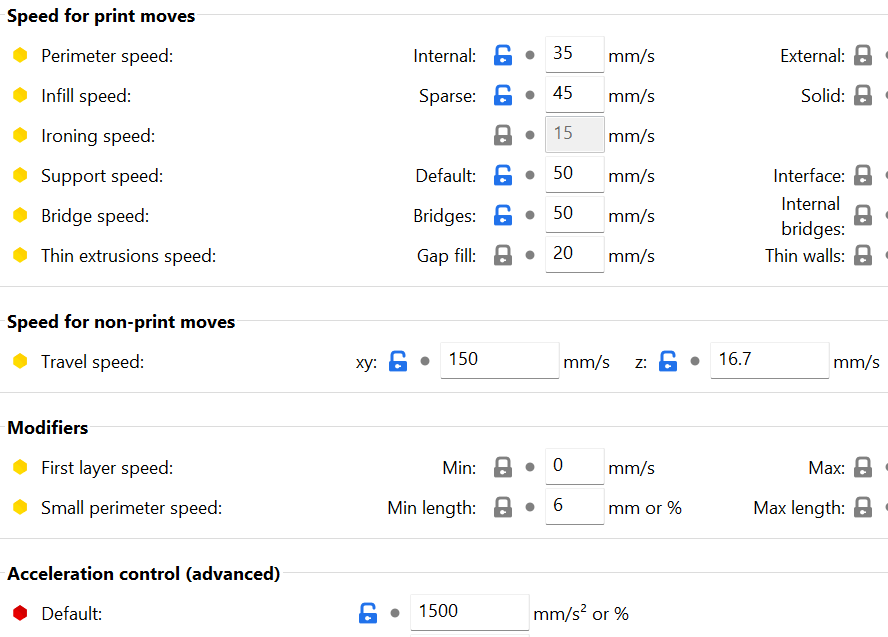

Speed

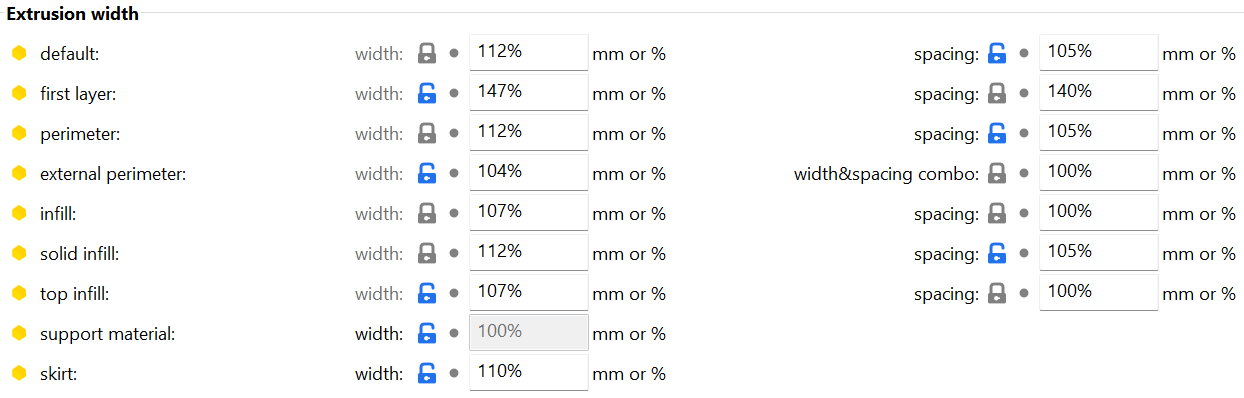

Width & Flow
